● The excellent appearance accord with ergonomic design
● The integrated body design makes products maintain long-term stability
● High-quality 3W LED lamp and long time using life
● Infinity achromatic correction optical system and the common optical system can meet the different customers' requirements
Specification:
● Viewing Head: Articulated free binocular head, 30° inclined, interpupillary distance 50-75mm

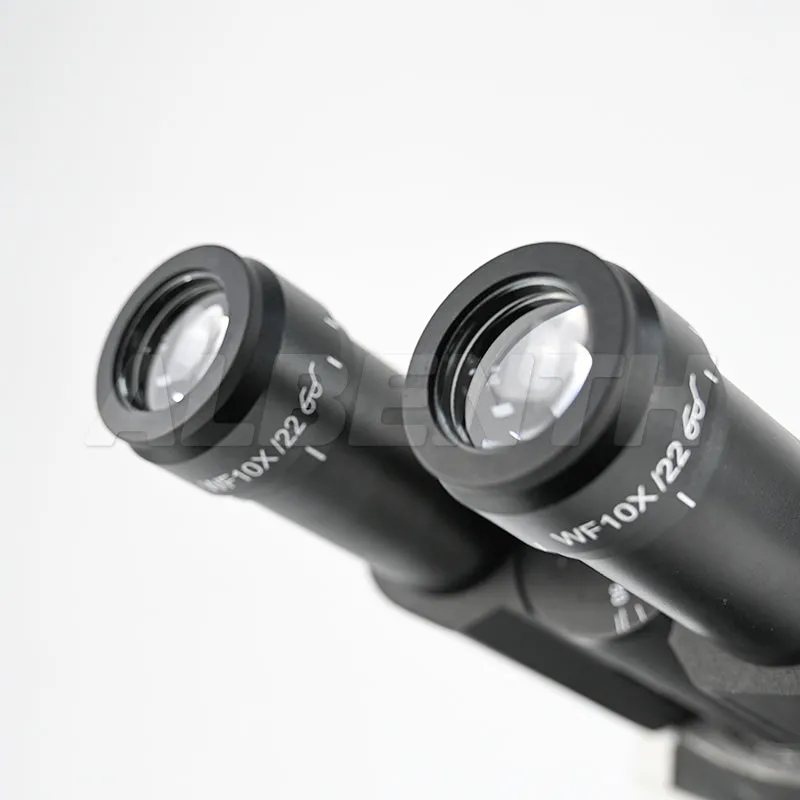

● Eyepiece: PL10X/22mm high eyepoint eyepiece, diopter adjustment ±5, tube Ø30mm

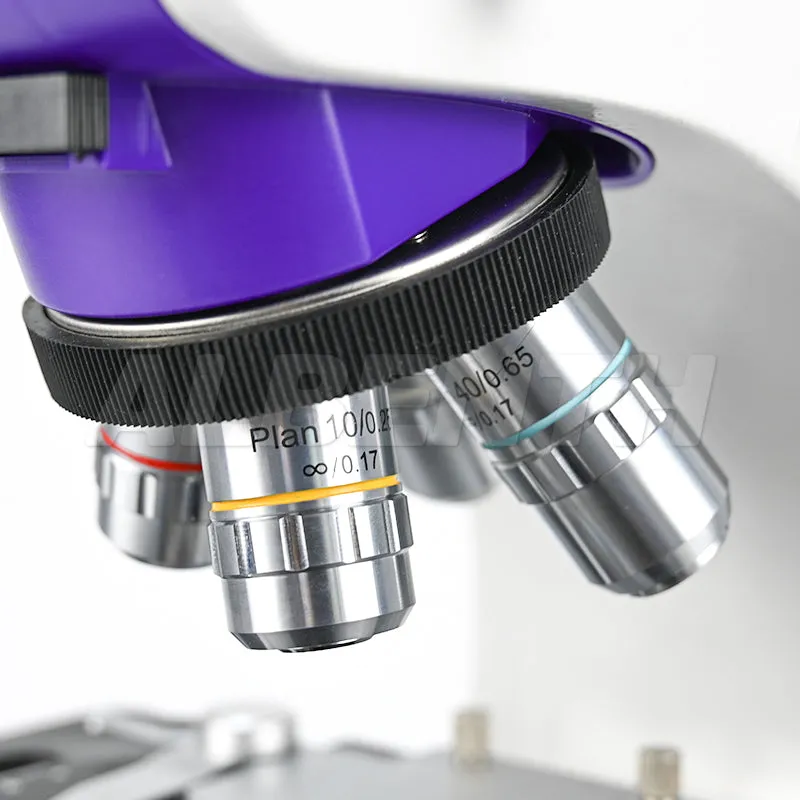

● Infinity Plan Achromatic Objectives:
- 4X/0.10, ∞/0.17
- 10X/0.25, ∞/0.17
- 40X/0.65(S), ∞/0.17
- 100X/1.25(S, Oil), ∞/0.17
● Nosepiece: Backward quadruple nosepiece

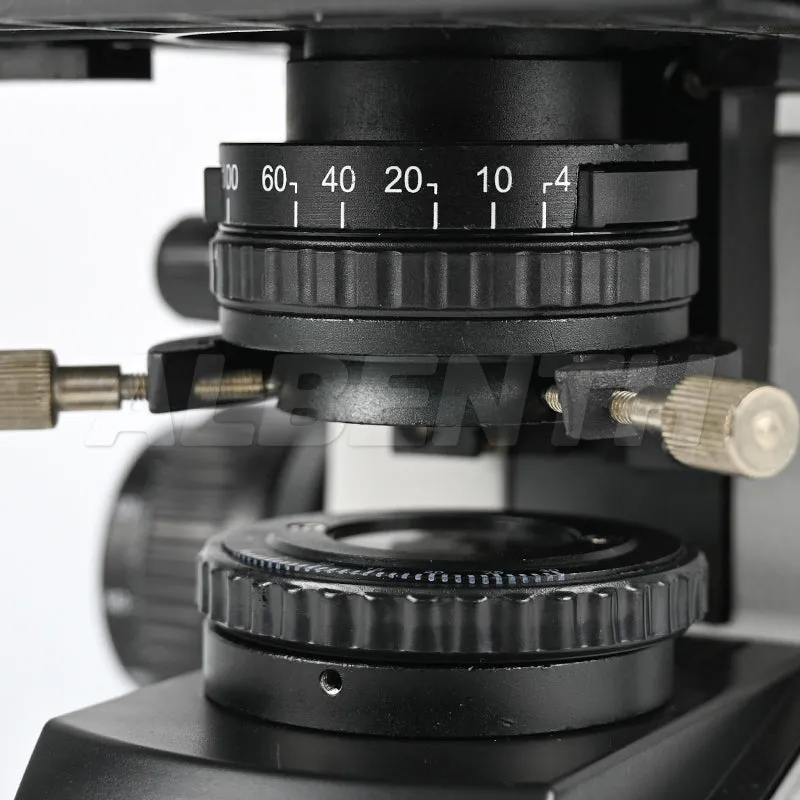

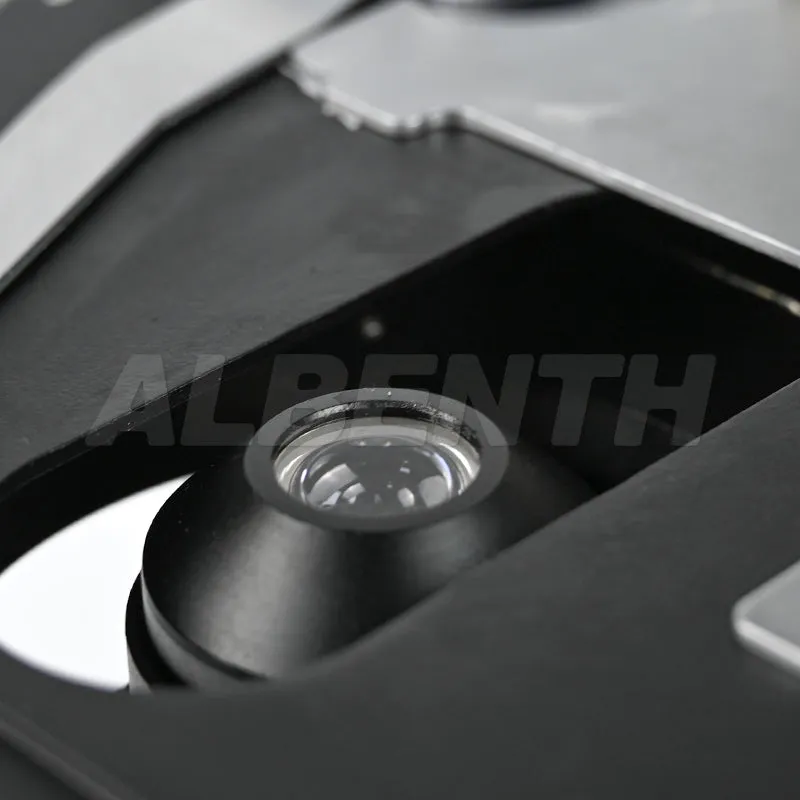

● Condenser: Abbe condenser set
● Stage: 220*148mm X-aris low hand position double mechanical stage(steel wire transmission): 76*50mm, precision 0.1mm, damped double slide clamp
● Focusing System: Coaxial coarse and fine focus knobs, precision 0.002mm
● Illumination: 3W LED lamp with Kohler illumination system
● Filter: Blue, Yellow, Green filter
Packing List:
1x Binocular head
1x Microscope body
1x Infinity plan achromatic objectives 4X,10X,40X,100X
1x Pair PL10X/22mm eyepieces
1x Condenser
1x Blue filter
1x Yellow filter
1x Green filter
1x Power cord
1x Dust cover
